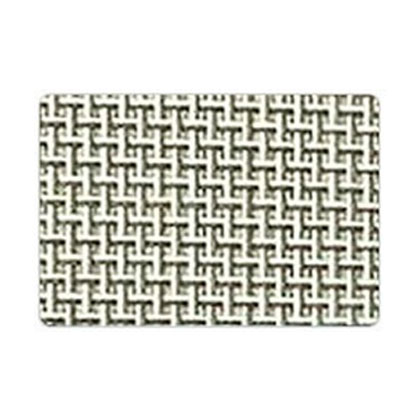

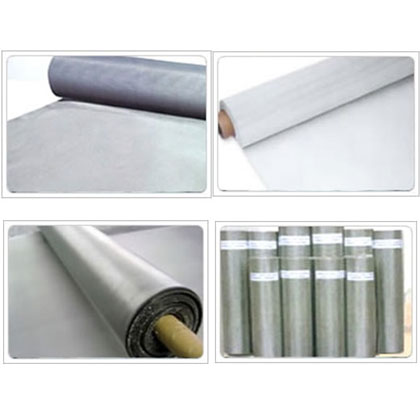

Stainless Steel Square Wire Mesh Uses: Stainless steel wire mesh and stainless steel wire cloth products are widely used in petroleum, chemical industry, environment protection, mine, airspace, paper-making, electronic, metallurgy etc. Special size and specification are available according to customers’ requirement.
Stainless Steel Square Wire Mesh Sizes: Standard roll width of stainless steel square wire mesh: 1m to 48″
Standard roll length of stainless steel square wire mesh: 30m to 100″
| Mesh | Wire Dia. | Aperture | ||
| Inch | mm | Inch | mm | |
| 1×1 | .080 | 2.03 | .920 | 23.37 |
| 2X2 | .063 | 1.60 | .437 | 11.10 |
| 3X3 | .054 | 1.37 | .279 | 7.09 |
| 4X4 | .063 | 1.60 | .187 | 4.75 |
| 4X4 | .047 | 1.19 | .203 | 5.16 |
| 5X5 | .041 | 1.04 | .159 | 4.04 |
| 6X6 | .035 | .89 | .132 | 3.35 |
| 8X8 | .028 | .71 | .097 | 2.46 |
| 10X10 | .025 | .64 | .075 | 1.91 |
| 10X10 | .020 | .51 | .080 | 2.03 |
| 12X12 | .023 | .584 | .060 | 1.52 |
| 12X12 | .020 | .508 | .063 | 1.60 |
| 14X14 | .023 | .584 | .048 | 1.22 |
| 14X14 | .020 | .508 | .051 | 1.30 |
| 16X16 | .018 | .457 | .0445 | 1.13 |
| 18X18 | .017 | .432 | .0386 | .98 |
| 20X20 | .020 | .508 | .0300 | .76 |
| 20X20 | .016 | .406 | .0340 | .86 |
| 24X24 | .014 | .356 | .0277 | .70 |
| 30X30 | .013 | .330 | .0203 | .52 |
| 30X30 | .012 | .305 | .0213 | .54 |
| 30X30 | .009 | .229 | .0243 | .62 |
| 35X35 | .011 | .279 | .0176 | .45 |
| 40X40 | .010 | .254 | .0150 | .38 |
| 50X50 | .009 | .229 | .0110 | .28 |
| 50X50 | .008 | .203 | .0120 | .31 |
| 60X60 | .0075 | .191 | .0092 | .23 |
| 60X60 | .007 | .178 | .0097 | .25 |
| 70X70 | .0065 | .165 | .0078 | .20 |
| 80X80 | .0065 | .165 | .0060 | .15 |
| 80X80 | .0055 | .140 | .0070 | .18 |
| 90X90 | .005 | .127 | .0061 | .16 |
| 100X100 | .0045 | .114 | .0055 | .14 |
| 100X100 | .004 | .102 | .0060 | .15 |
| 100X100 | .0035 | .089 | .0065 | .17 |
| 110X110 | .0040 | .1016 | .0051 | .1295 |
| 120X120 | .0037 | .0940 | .0064 | .1168 |
| 150X150 | .0026 | .0660 | .0041 | .1041 |
| 160X160 | .0025 | .0635 | .0038 | .0965 |
| 180X180 | .0023 | .0584 | .0033 | .0838 |
| 200X200 | .0021 | .0533 | .0029 | .0737 |
| 250X250 | .0016 | .0406 | .0024 | .0610 |
| 270X270 | .0016 | .0406 | .0021 | .0533 |
| 300X300 | .0051 | .0381 | .0018 | .0457 |
| 325X325 | .0014 | .0356 | .0017 | .0432 |
| 400X400 | .0010 | .0254 | .0015 | .370 |
| 500X500 | .0010 | .0254 | .0010 | .0254 |
| 635X635 | .0008 | .0203 | .0008 | .0203 |
